PNEUMATIC QUICK COUPLING

FOB Reference Price:Get Latest Price
US $0.73-1.18 / Pieces | 1000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Valves
Place of Origin:
Zhejiang, China (Mainland)
Model Number:
ESF,ESM,ESH,ESL,EPF..
Brand Name:
QPE
SupplyAbility
SupplyAbility:
10000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Plastic bags+Pure box+Carton
Port
Ningbo/Shanghai
Lead Time :
3-4weeks
Feature:
*"E"series couplings feature a unique design that allows for simple push-to connect operation yet requires a two step process to disconnect.To disconnect,the nipple must be pushed into the coupler before the coupler sleeve can be retracted.
*This sleeve locking feature greatly reduces the potential of accidental disconnects in applications where connection integrity is of primary importance.
*Typical uses include rescue and breathing air equipment in addition to general pneumatic applications.
*Couplers feature solid brass construction,nickel plating,sleeve guard,high flow window valve,stainless steel springs and locking balls.

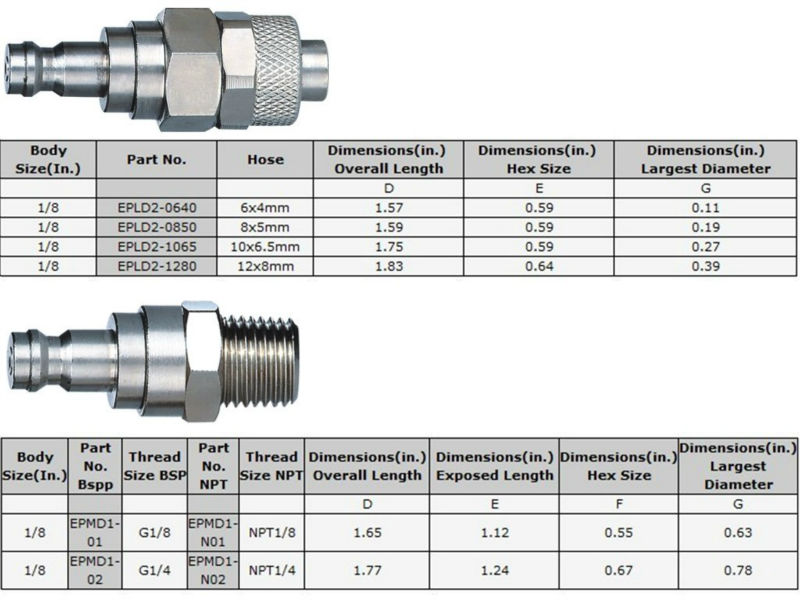

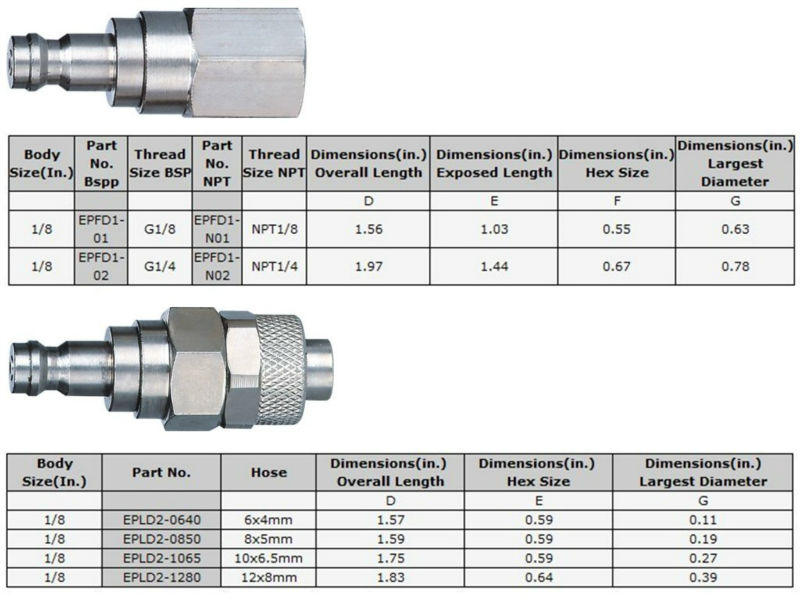

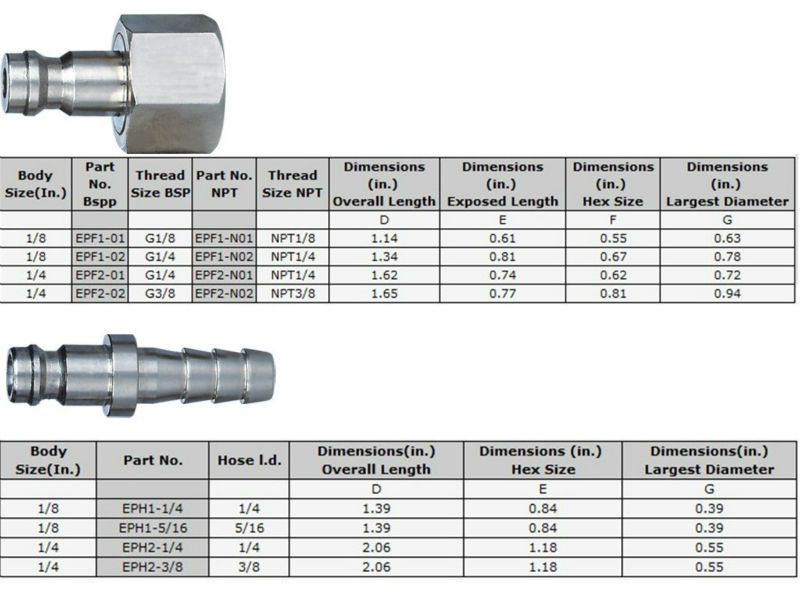

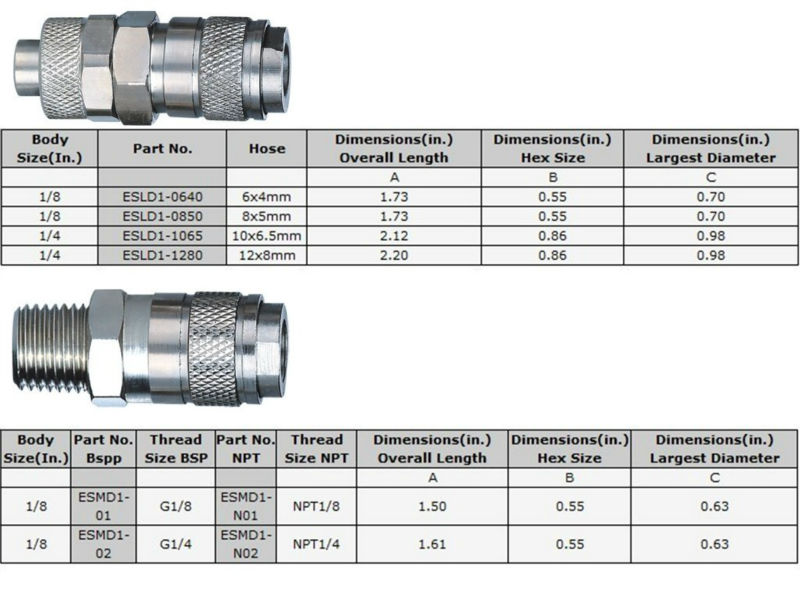

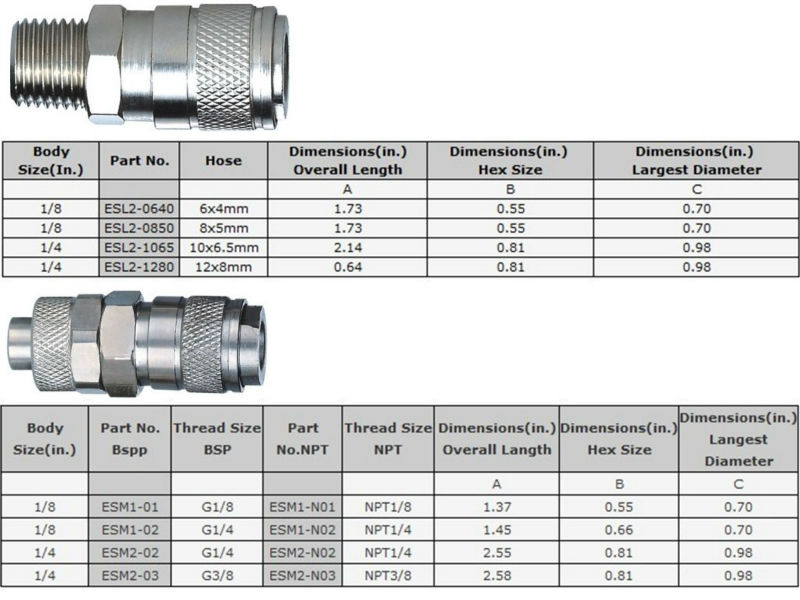

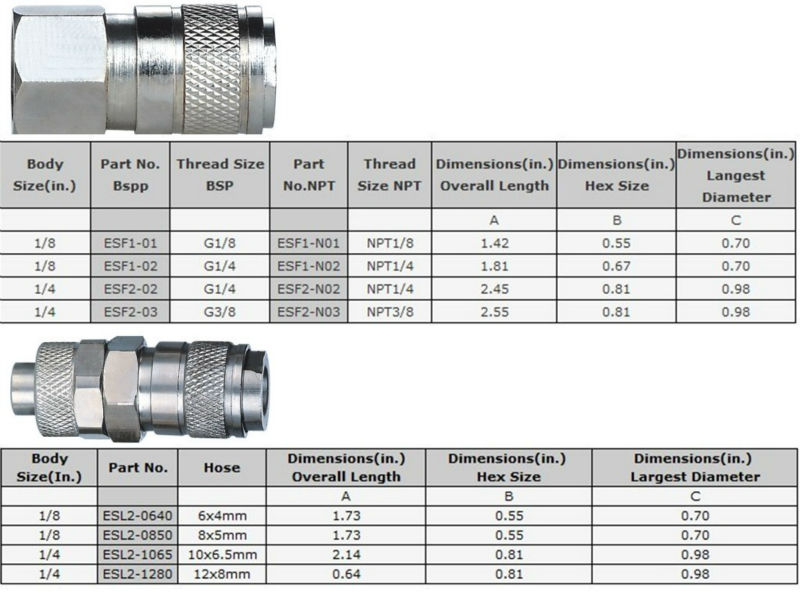

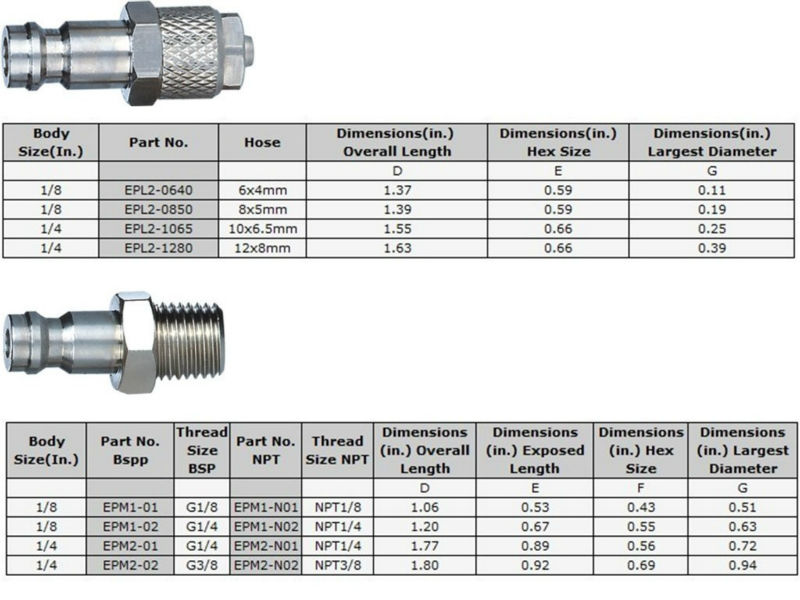

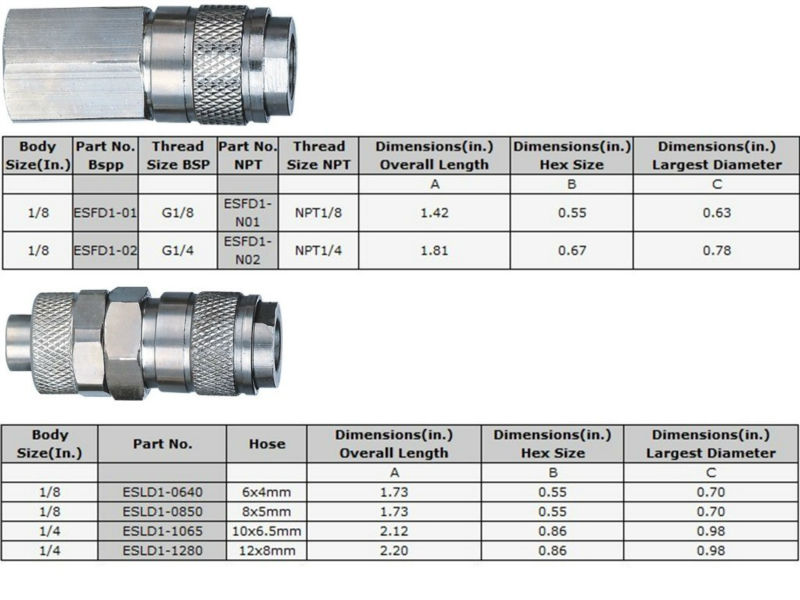

Specification:
Body Size1/8 1/4
Rated Pressure(PSI)150
Temperature Range(Nltrlle seal)-40°to+250°F.
Locking Device4balls
Vacuum ServiceNot Recommended
PRODUCING SHOP.
STOCK ROOM
PACKAGE
TESTING MACHINE

DETAILS PLS CHECK OUR WEBSITE LINK:  http://www.qpefittings.com/rectus-series-21-interchange.htm
