Push And Pull Type Hydraulic Quick Couplings

FOB Reference Price:Get Latest Price
US $1.4-4.2 / Piece | 1000 Piece/Pieces (Min. Order)
Supply Ability:
10000 Piece/Pieces per Day
Port:
Ningbo/Shanghai
Report Suspicious Activity
Overview
Quick Details
Material:
Carbon Steel
Technics:
machinery
Type:
Coupling
Place of Origin:
Zhejiang, China (Mainland)
Model Number:
KZA
Brand Name:
QPE
Connection:
connect
Shape:
Equal
Head Code:
Other
Packaging & Delivery
Packaging Details
Plastic bag+Pure box+Carton
Delivery Time
3-4 weeks!
Features:
1. Double acting sleeve for one handed operation when coupler is clamp or bulkhead mounted.
2. Poppet valves available to prevent uncoupled leakage.
3. Ball valves available for rugged dependability in heavy-duty hydraulic applications,within rated working pressure.
4. Critical parts are induction hardened for durability
5. Dependable ball-locking mechanism holds the mating halves together.
6. Couplers and nipple are precision machined from solid bar stock.

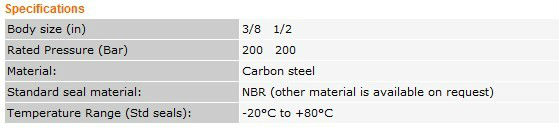

Specifications:
Body size (in)3/8 1/2
Rated Pressure (Bar)200 200
Material:Carbon steel
Standard seal material:NBR (other material is available on request)
Temperature Range (Std seals):-20°C to +80°C
PRODUCING SHOP.
STOCK ROOM
PACKAGE
TESTING MACHINE
